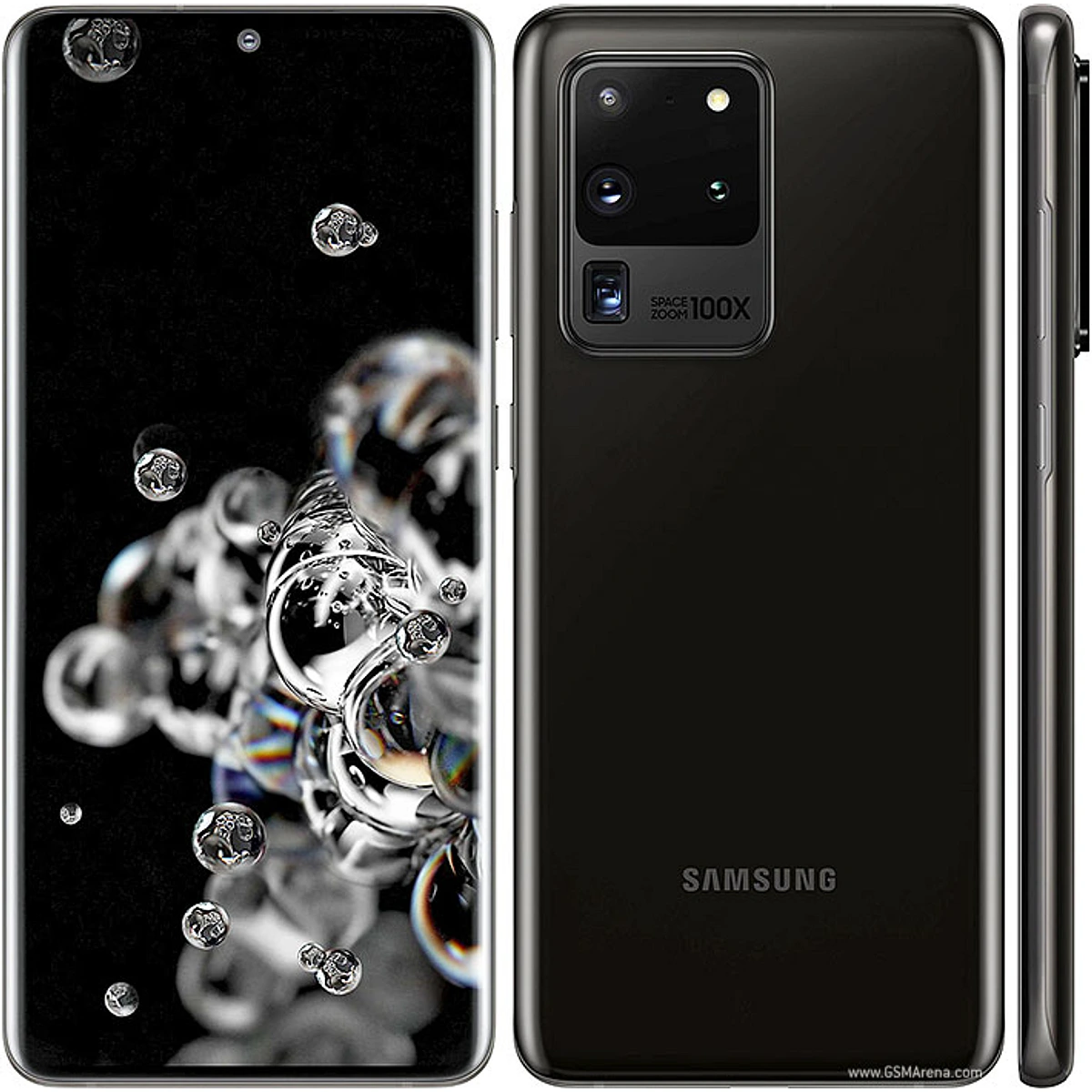

Samsung Galaxy S20 Ultra 5G (SM-G988W)
Released 2020, March 6
222g, 8.8mm thickness
Android 10, up to Android 13, One UI 5.1
128GB/256GB/512GB storage, microSDXC, card slot
Samsung Galaxy S20 Ultra 5G Released 2020, March 06 | 222g, 8.8mm thickness | Android 10, up to Android 13, One UI 5.1 | 128GB/256GB/512GB storage, microSDXC | Dynamic AMOLED 2X, 120Hz, HDR10+, 1400 nits (peak) | 108 MP, f/1.8, 26mm (wide), 1/1.33", 0.8µm, PDAF, OIS 48 MP, f/3.5, 103mm (periscope telephoto), 1/2.0", 0.8µm, PDAF, OIS, 4x optical zoom, 10x hybrid zoom 12 MP, f/
Samsung Galaxy S20 Ultra 5G Network Specifications
| Speed | HSPA 42.2/5.76 Mbps, LTE (7CA) Cat20 2000/200 Mbps, 5G (5+ Gbps DL) |
| 5G | 1, 3, 5, 7, 8, 28, 40, 77, 78 SA/NSA/Sub6 - SM-G988B |
| 4G | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 32, 38, 39, 40, 41, 66 - SM-G988B |
| 3G | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 2G | GSM 850 / 900 / 1800 / 1900 |
| Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
Timeline
Released2020, March 6
Samsung Galaxy S20 Ultra 5G body Specifications
| SIM | · Nano-SIM + eSIM · Nano-SIM + Nano-SIM |
| Build | Glass front (Gorilla Glass 6), glass back (Gorilla Glass 6), aluminum frame |
| Weight | 222 g (7.83 oz) |
| Dimensions | 166.9 x 76 x 8.8 mm (6.57 x 2.99 x 0.35 in) |
Samsung Galaxy S20 Ultra 5G MISC Specifications
| SAR EU | 0.32 W/kg (head) 1.56 W/kg (body) |
| SAR US | 0.94 W/kg (head) 0.95 W/kg (body) |
| Colors | Cosmic Grey, Cosmic Black, Cloud White |
Samsung Galaxy S20 Ultra 5G display Specifications
| Protection | Corning Gorilla Glass 6 |
| Resolution | 1440 x 3200 pixels, 20:9 ratio (~511 ppi density) |
| Size | 6.9 inches, 114.0 cm 2 (~89.9% screen-to-body ratio) |
| Type | Dynamic AMOLED 2X, 120Hz, HDR10+, 1400 nits (peak) |
Samsung Galaxy S20 Ultra 5G Sound Specifications
| 3.5mm jack | No |
| Loudspeaker | Yes, with stereo speakers |
Samsung Galaxy S20 Ultra 5G Platform Specifications
| GPU | Mali-G77 MP11 - Global Adreno 650 - USA |
| CPU | Octa-core (2x2.73 GHz Mongoose M5 & 2x2.50 GHz Cortex-A76 & 4x2.0 GHz Cortex-A55) - Global Octa-core (1x2.84 GHz Cortex-A77 & 3x2.42 GHz Cortex-A77 & 4x1.80 GHz Cortex-A55) - USA |
| Chipset | Exynos 990 (7 nm+) - Global Qualcomm SM8250 Snapdragon 865 5G (7 nm+) - USA |
| OS | Android 10, upgradable to Android 13, One UI 5.1 |
Samsung Galaxy S20 Ultra 5G Battery Specifications
| Charging | 45W wired, PD3.0 15W wireless (Qi) 4.5W reverse wireless |
| Battery | Li-Ion 5000 mAh |
Samsung Galaxy S20 Ultra 5G memory Specifications
| Internal | 128GB 12GB RAM, 256GB 12GB RAM, 512GB 16GB RAM |
| Card slot | microSDXC (uses shared SIM slot) |
Samsung Galaxy S20 Ultra 5G Main Camera Specifications
| Video | 8K@24fps, 4K@30/60fps, 1080p@30/60/240fps, 720p@960fps, HDR10+, stereo sound rec., gyro-EIS & OIS |
| Features | LED flash, auto-HDR, panorama |
| Camera | 108 MP, f/1.8, 26mm (wide), 1/1.33", 0.8µm, PDAF, OIS 48 MP, f/3.5, 103mm (periscope telephoto), 1/2.0", 0.8µm, PDAF, OIS, 4x optical zoom, 10x hybrid zoom 12 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55" 1.4µm, Super Steady video 0.3 MP, TOF 3D, f/1.0, (depth) |
