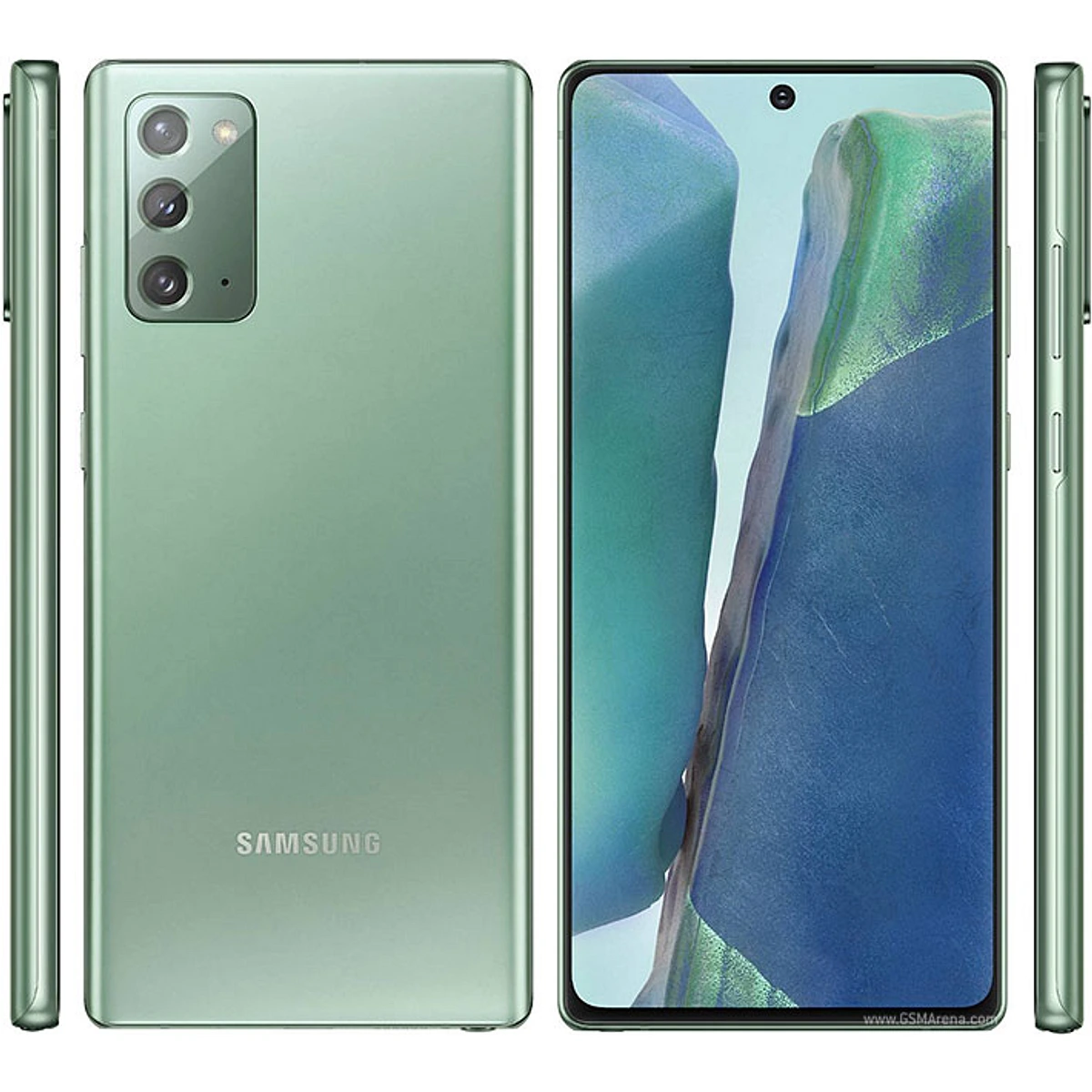

Samsung Galaxy Note20 5G (SM-N981W)
Released 2020, August 21
192g (Sub6 5G), 194g (mmWave 5G), 8.3mm thickness
Android 10, up to Android 13, One UI 5
128GB/256GB storage, no card slot, no card slot
Samsung Galaxy Note20 5G Released 2020, August 21 | 192g (Sub6 5G), 194g (mmWave 5G), 8.3mm thickness | Android 10, up to Android 13, One UI 5 | 128GB/256GB storage, no card slot | Super AMOLED Plus, HDR10+ | 12 MP, f/1.8, 26mm (wide), 1/1.76", 1.8µm, dual pixel PDAF, OIS 64 MP, f/2.0, 27mm (telephoto), 1/1.72", 0.8µm, PDAF, OIS, 3x hybrid zoom 12 MP, f/2.2, 120˚, 13mm (ul
Samsung Galaxy Note20 5G Network Specifications
| Speed | HSPA 42.2/5.76 Mbps, LTE (7CA) Cat20 2000/200 Mbps, 5G |
| 5G | 2, 5, 41, 66, 71, 260, 261 SA/NSA/Sub6/mmWave - SM-N981U |
| 4G | 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 46, 48, 66, 71 - SM-N981U |
| 3G | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 2G | GSM 850 / 900 / 1800 / 1900 |
| Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
Timeline
Released2020, August 21
Samsung Galaxy Note20 5G body Specifications
| SIM | · Nano-SIM + eSIM · Nano-SIM + Nano-SIM |
| Build | Glass front (Gorilla Glass 5), plastic back |
| Weight | 192 g (Sub6 5G), 194 g (mmWave 5G) (6.77 oz) |
| Dimensions | 161.6 x 75.2 x 8.3 mm (6.36 x 2.96 x 0.33 in) |
Samsung Galaxy Note20 5G MISC Specifications
| SAR EU | 0.68 W/kg (head) 1.37 W/kg (body) |
| SAR US | 0.95 W/kg (head) 0.72 W/kg (body) |
| Colors | Mystic Green, Mystic Bronze, Mystic Gray, Mystic Red, Mystic Blue |
Samsung Galaxy Note20 5G display Specifications
| Protection | Corning Gorilla Glass 5 |
| Resolution | 1080 x 2400 pixels, 20:9 ratio (~393 ppi density) |
| Size | 6.7 inches, 108.4 cm 2 (~89.2% screen-to-body ratio) |
| Type | Super AMOLED Plus, HDR10+ |
Samsung Galaxy Note20 5G Sound Specifications
| 3.5mm jack | No |
| Loudspeaker | Yes, with stereo speakers |
Samsung Galaxy Note20 5G Platform Specifications
| GPU | Mali-G77 MP11 - Global Adreno 650 - USA |
| CPU | Octa-core (2x2.73 GHz Mongoose M5 & 2x2.50 GHz Cortex-A76 & 4x2.0 GHz Cortex-A55) - Global Octa-core (1x3.0 GHz Kryo 585 & 3x2.42 GHz Cortex-A77 & 4x1.80 GHz Cortex-A55) - USA |
| Chipset | Exynos 990 (7 nm+) - Global Qualcomm SM8250 Snapdragon 865 5G+ (7 nm+) - USA |
| OS | Android 10, upgradable to Android 13, One UI 5 |
Samsung Galaxy Note20 5G Battery Specifications
| Charging | 25W wired, PD3.0 15W wireless (Qi) 4.5W reverse wireless |
| Battery | Li-Ion 4300 mAh |
Samsung Galaxy Note20 5G memory Specifications
| Internal | 128GB 8GB RAM, 256GB 8GB RAM |
| Card slot | No |
Samsung Galaxy Note20 5G Main Camera Specifications
| Video | 8K@24fps, 4K@30/60fps, 1080p@30/60/240fps, 720p@960fps, HDR10+, stereo sound rec., gyro-EIS & OIS |
| Features | LED flash, auto-HDR, panorama |
| Camera | 12 MP, f/1.8, 26mm (wide), 1/1.76", 1.8µm, dual pixel PDAF, OIS 64 MP, f/2.0, 27mm (telephoto), 1/1.72", 0.8µm, PDAF, OIS, 3x hybrid zoom 12 MP, f/2.2, 120˚, 13mm (ultrawide), 1/2.55", 1.4µm |
